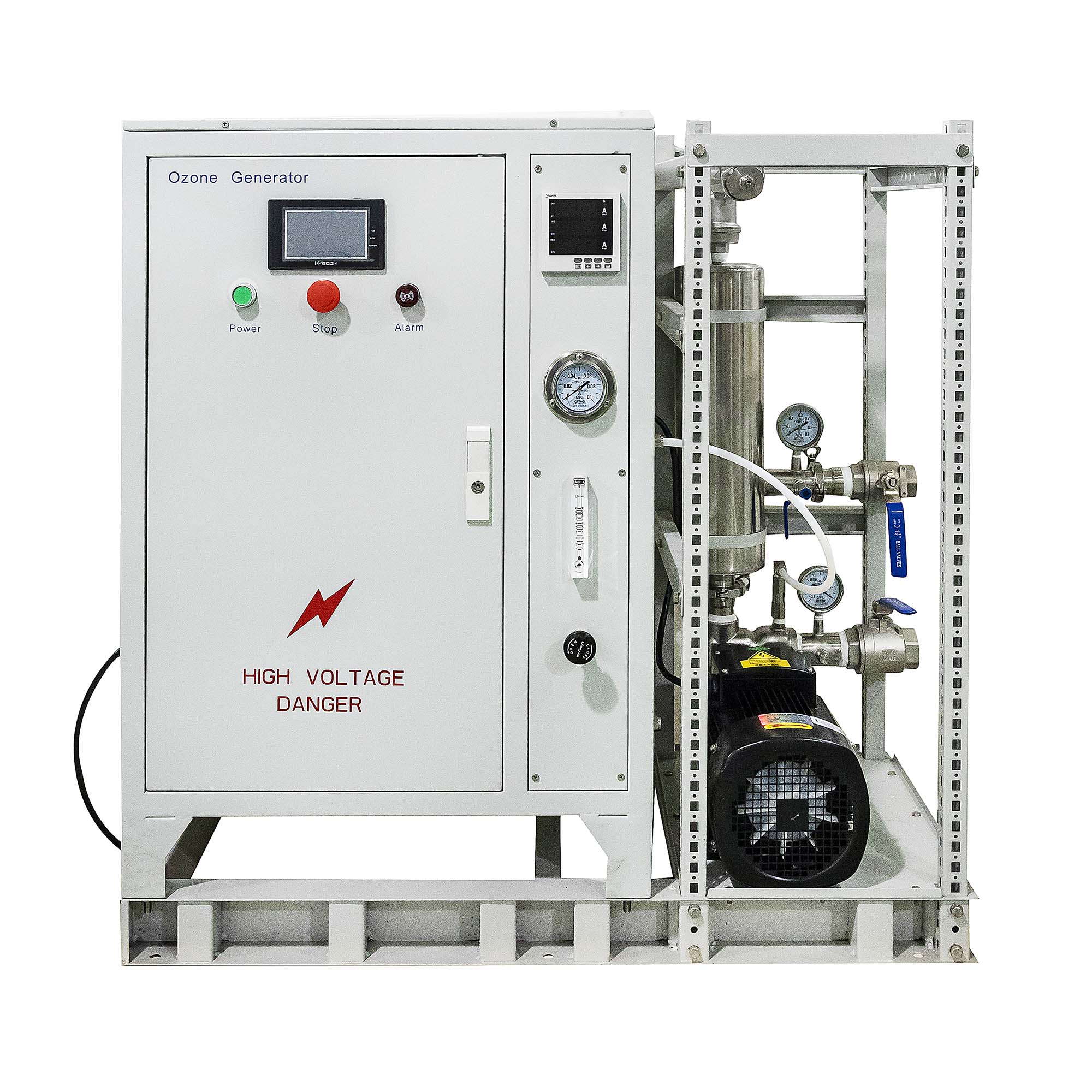

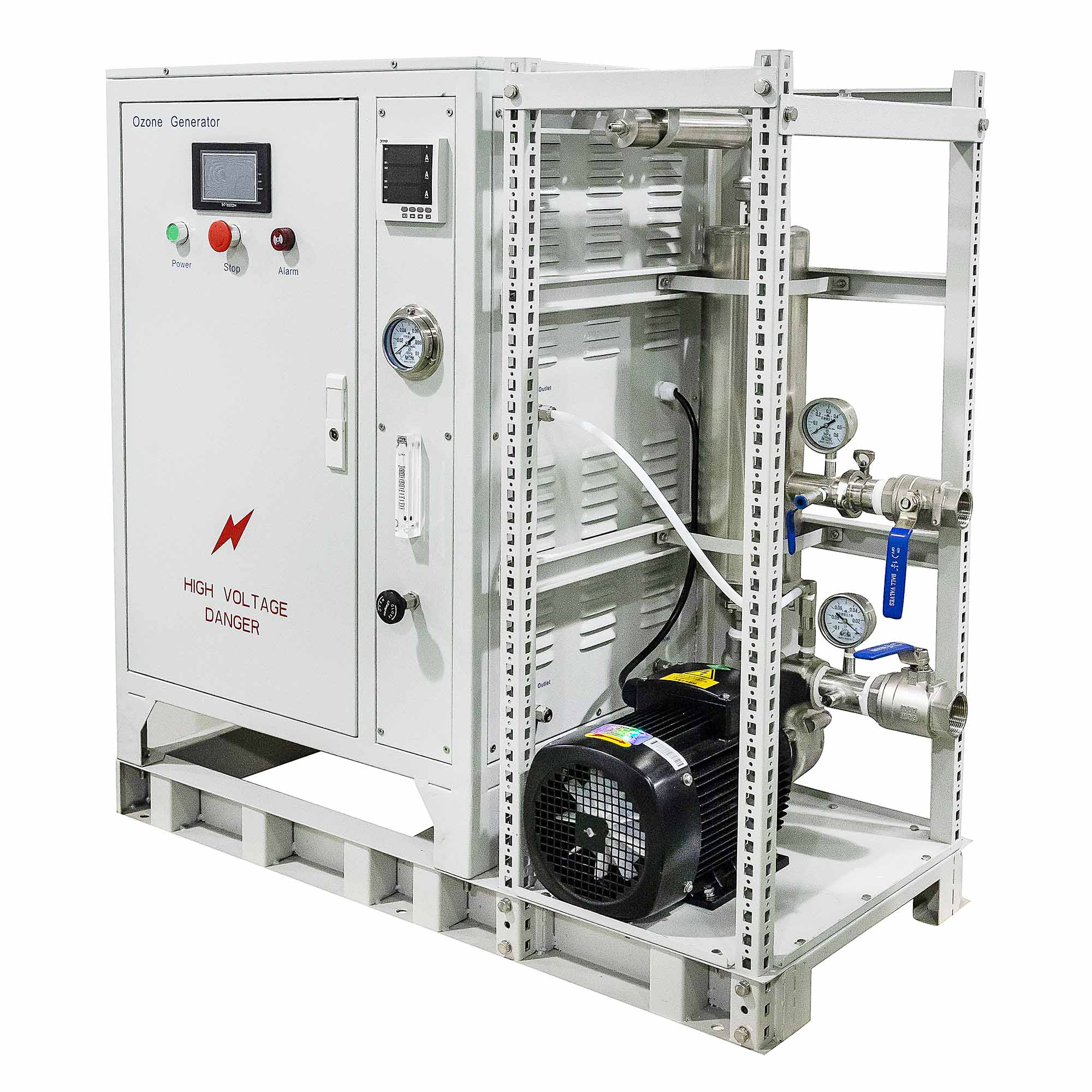

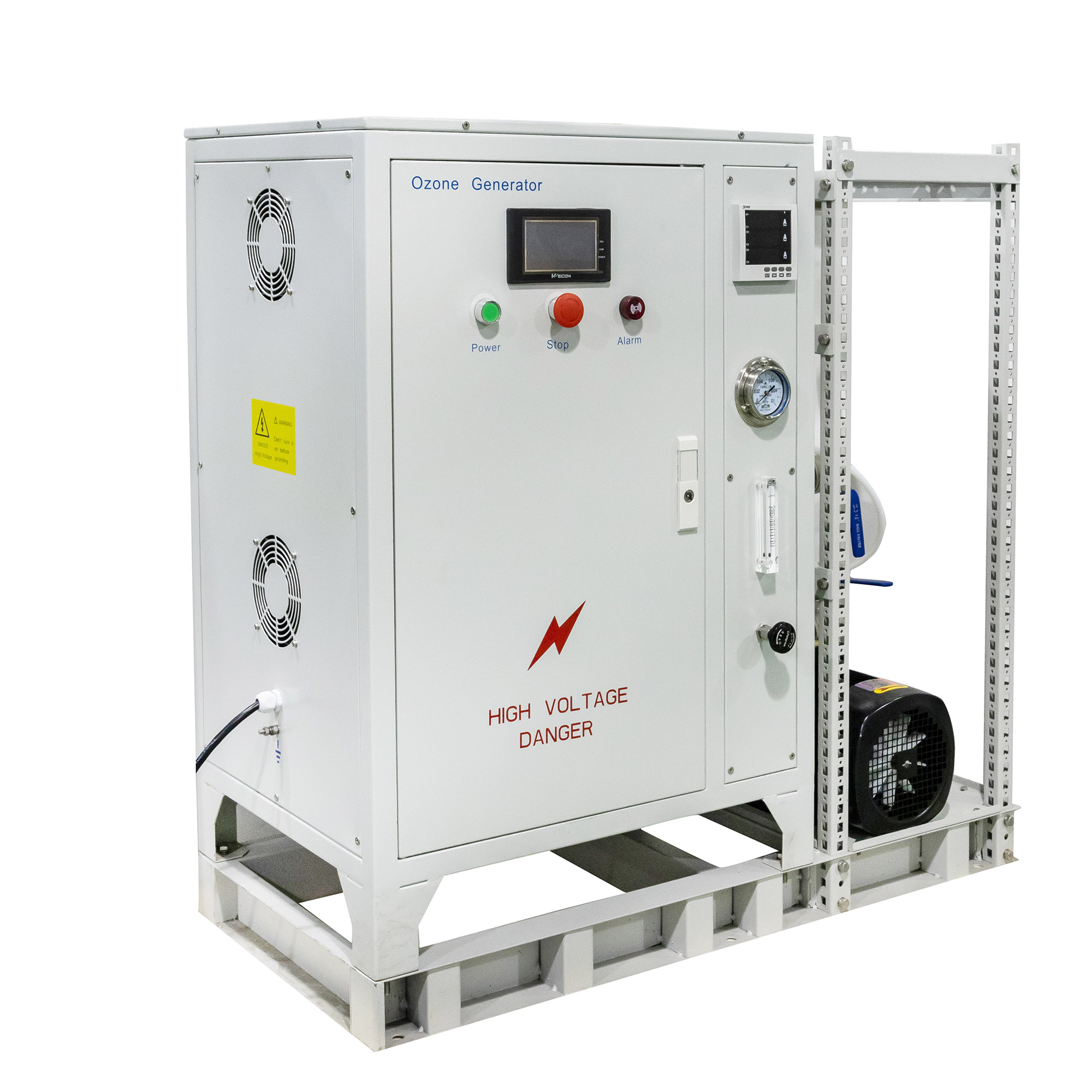

30g ozonated water machine and ozone disinfection machine for bottled water treatment plants

PARAMETERS

Ozone generator built-in PSA oxygen generation system, gas liuqid mixing pump and gas liquid seperation tank and ozone destructor which can produce ozonated water directly.

Item No.	HW-OW-30
Ozone Production	30g/h
Ozone Concentration	100mg/L
Oxygen Flow Rate	5L/min
Gas liquid mixing pump	2Nm3/h
Rated Power	1.55KW
Ozonated water concentration	9ppm
Power Supply (V/HZ )	3PH/380/50-60Hz
Dimension (mm)	12506301260
Weight	185Kg

Contact Now

Product Description

30g ozonated water machine and ozone disinfection machine for bottled water treatment plants

Both ozone capacity and ozone concentration can be adjusted from 10%-100%. We accept OEM and ODM orders.

Manufacturing Technique

Our Applications

Our Certificates

Our Company introduction

Allied Power produce ozone generators from 10g/h to 50Kg/h.

Fujian Allied Power EnTech Co.,Ltd was founded in 2004.Allied Power developed the most efficient and reliable ozone generator with ozone production from 10g/h to 50kg/h.We adopt double micro-gaps dielectric barrier corona discharge (DBCD) technology,quartz glass tubes and SS316L tubes as dielectric medium. High dielectric constant could ensure the ozone generator works stably and produce high concentration ozone.The highest ozone concentration of our ozone generator could reach 230mg/l.
